China wire deck supplier

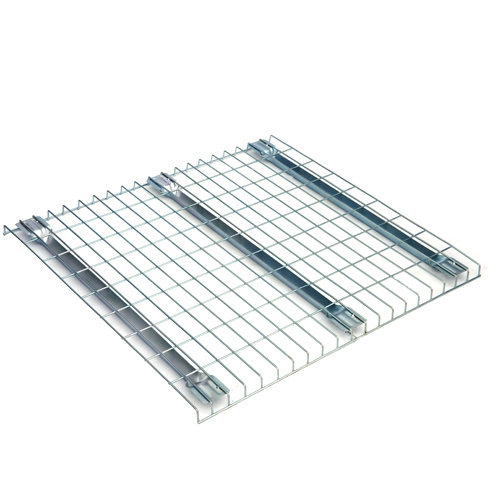

Wire decking


Wire decking is a main products in our product line. It is widely used in warehouse, as an accompany of rack. The outside finish can be powder coated, galvanized, and also spray paint. It is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. Wire mesh decking comes in various thicknesses and mesh dimensions.  Most wire mesh decking has U-shaped channel or flared supports, to support the load. With this waterfall decking, the wire mesh extends across the top and down the front of the beam to provide more support, and is more desirable in the marketplace.

Equipment



Our wire decking is widely exporting to US, UK, France & Australia. Please see below stock size. Customer size is available.

Call us now to get a FREE sample for test!

wire deck supplier

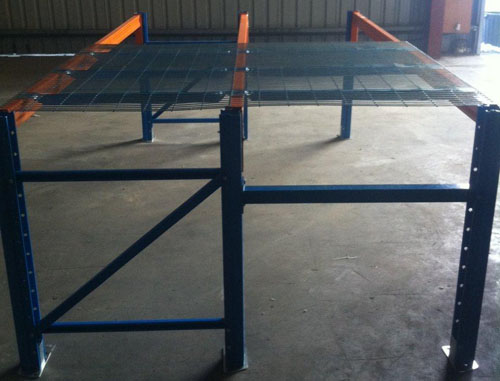

3 laged frame

Stock size popular in US market
Model
(Flared or step style)
Size
(D x L)
Weight
(lbs)
Mesh
Gauge / mm
Channels
Capacity
2446-3-2545
24" x 46"
12.4
2.5" x 4.5"
4 / 5.3
3
3000
3046-3-2545
30" x 46"
15.6
2.5" x 4.5"
4 / 5.3
3
3000
3646-3-2545
36" x 46"
18.4
2.5" x 4.5"
4 / 5.3
3
2700
3652-3-2545
36" x 52"
19.6
2.5" x 4.5"
4 / 5.3
3
2500
3658-3-2545
36" x 58"
21.8
2.5" x 4.5"
4 / 5.3
3
2750
4246-3-2545
42" x 46"
21.5
2.5" x 4.5"
4 / 5.3
3
2800
4252-3-2545
42" x 52"
23
2.5" x 4.5"
4 / 5.3
3
2500
4258-4-2545
42" x 58"
27.5
2.5" x 4.5"
4 / 5.3
4
2800
4446-3-2545
44" x 46"
23
2.5" x 4.5"
4 / 5.3
3
2500
4452-3-2545
44'' x 52''
27
2.5" x 4.5"
4 / 5.3
4
2600
4846-3-2545
48" x 46"
25
2.5" x 4.5"
4 / 5.3
3
2500
4852-4-2545
48" x 52"
31
2.5" x 4.5"
4 / 5.3
4
2500
4858-4-2545
48" x 58"
33
2.5" x 4.5"
4 / 5.3
4
2500
6046-4-2545
60" x 46"
38
2.5" x 4.5"
4 / 5.3
4
2500
Stock size popular in Australia market
Model
Length
(mm)
Depth
(mm)
Wire
(mm)
Mesh
(mm)
Supports
Capacity
(kgs)
Flared wire deck
1250, 1350
840, 900, 1070,
1170, 1220
4.0, 5.0,
5.3, 5.5
25x100,
50x100
2, 3, 4
500, 1000,
1500
Stock size popular in UK market
Model
Length
(mm)
Depth
(mm)
Wire
(mm)
Mesh
(mm)
Supports
Capacity
(kgs)
Flared wire deck
1118, 1320
910, 1110
5.0
50x100
2, 3, 4
1000, 1500
Stock size popular in France market
Model
Length
(mm)
Depth
(mm)
Wire
(mm)
Mesh
(mm)
Supports
Capacity
(kgs)
Flared wire deck
Step wire deck
1000, 1050, 1100
880
5.0
50x100
3, 4
1000
