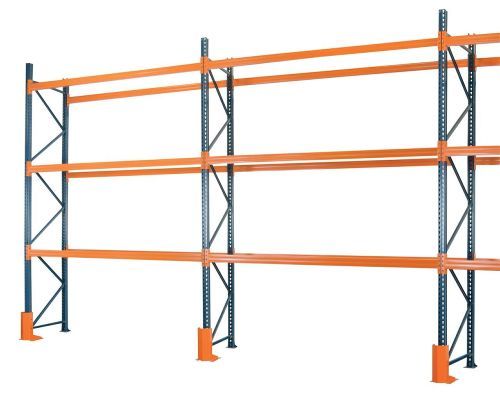

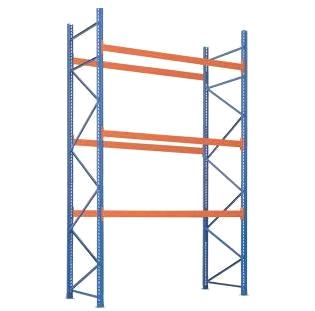

Dexion Pallet Rack (Europe style)

Please inform us the listed information in your inquiry for a quick quotation:

1) Size of your warehouse.
2) Width, depth and height of shelving.
3) How many layers you want.
4) How many bays you want.
5) Loading capacity of each layers.
6) Pallet size and weight
7) Drawing of your warehouse if available

Features:

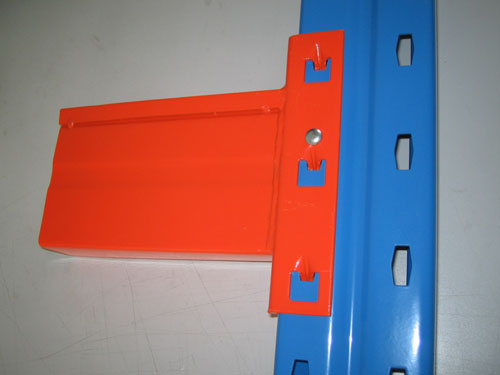

Beam levers are adjustable in 75mm pitch interval.
Different sizes, various specifications and colors are available according to customers’ different needs.
Maximizes space use ratio in any warehouse configuration while retaining optimum product accessibility.
Strength and rigidity prevents compression damage to goods.
Bottom level of pallets can be stored on the floor, lowering structure costs.
Load Capacity & Dimension:
Loading capacity: 500-2500 kgs UDL/beam level.
Height: 1000-10000mm
Depth: 400-1500mm
Length: 1500-3600mm
Specail sizes also avaiable to specific storage needs.
Main Parts Specs:
Uprights:80x60x2.0, 90x70x2.0, 100x70*2.0, 120x95x2.0, 120x95x2.5
Box beams: 80x50x1.5, 100x50x1.5, 120x50x1.5, 140x50x1.5, 160x50x1.5
Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Material:
High grade Q235B Steel
Finish:
High quality Powder Coating Finishing.
